    Automatic Liquid Bottle Filling Machine with PLC Control 10-40 bottles/min

    Ask Lasest Price
    Brand Name : LTPM China
    Certification : CE,SGS
    Model Number : YG-60
    Price : Negotiation
    Delivery Time : 25Days
    Payment Terms : T/T, L/C, D/P, Paypal
    Supply Ability : 25sets/month
    • Product Details
    • Company Profile

    Automatic Liquid Bottle Filling Machine with PLC Control 10-40 bottles/min

    Automatic Liquid Bottle Filling Machine For Eyedrop Bottle Filling Sealing Capping Capacity 40Bottles Per Minute


    Quick Details:


    Model: YG-60

    Capacity: 10-40bottles/min

    Volume: 5-60ml

    Pump: Ceramic Pump

    Operation: PLC Control with touch screen operation


    Description:


    YG-60 eye-drop filling and revolving auto-machine is applicable to the production of high yield of eye-drop. The machine has high speed, operates stable and is of high eligibility rate. Its transporting structure uses axis-leaving transporting, with gentle sound and long longevity. It’s inside tuck and outside lid can adopt the style of both the orbits and the single orbit. The machine can be also used to produce iodine, essential balm and tincture.


    Application:


    The machine is special used for Plastic Bottle Automatically Liquid Filling, Stopper Sealing and Cap Capping.


    Specification


    Model
    YG-60
    Capacity
    10-40bottles/min
    Filling Volume
    5-60ml
    Accuracy Rate
    ≤±0.5%
    Function
    Filling, Sealing, Capping
    Pump
    Ceramic Pump
    Control System
    PLC Control with touch Screen Operation
    Conveyor Belt Length
    2.4meter
    Power Supply
    380v 50Hz Three Phase
    Power
    0.5Kw
    Overall Dimension
    2400*1500*1700mm

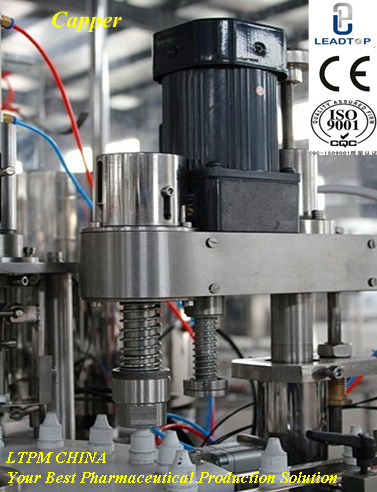

    Capping Motor

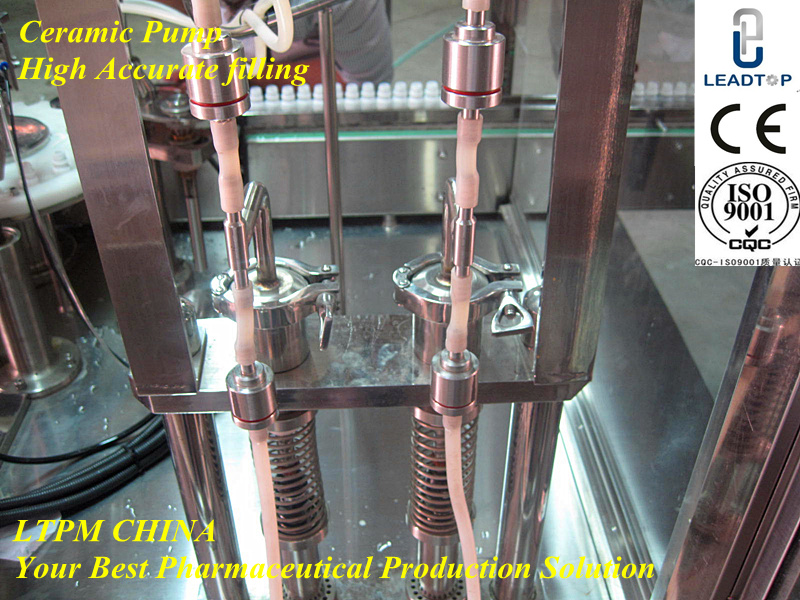

    Ceramic Filling Pump

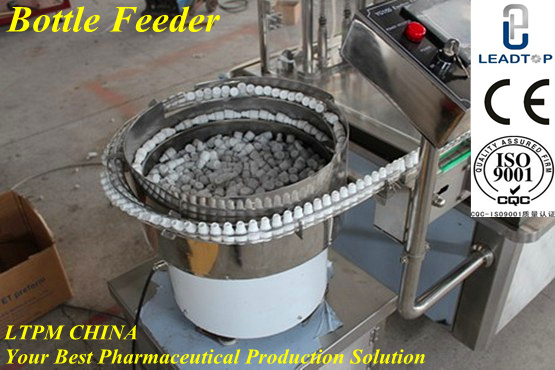

    Automatic Bottle Ordering Feeder



    Automatic Stopper Feeder



    Automatic Cap Feeder

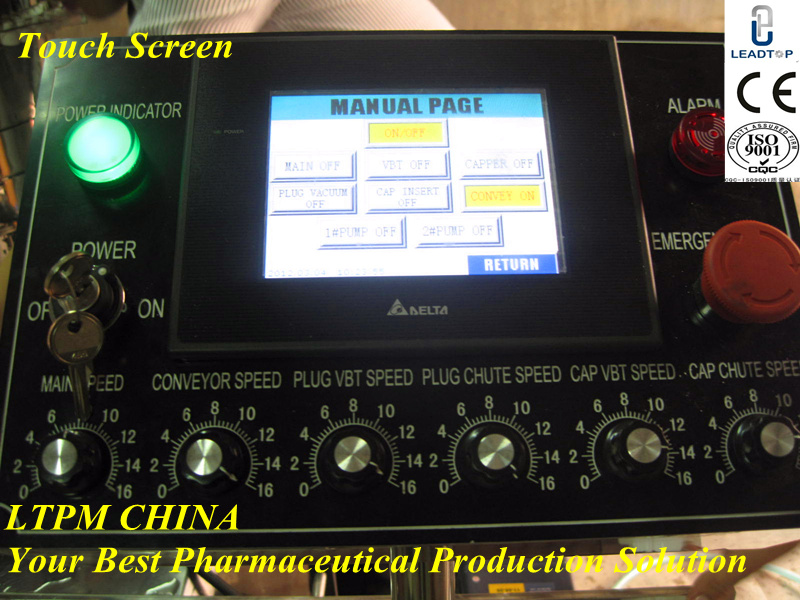

    Touch Screen
