Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control

Ask Lasest Price
Brand Name :	LTPM CHINA
Model Number :	DPP-Series
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	25 SETS Per month
Delivery Time :	25days

Add to Cart

Product Details
Company Profile

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control

This is new product designed for do sage room of hospital, medium-size and small-size pharmaceutical plant, health care product plant. DPB-Series Flat-Type Blister Packing Machine has small size of body, ease of operation, full purpose, stroke can be adjustable, long durability etc. Much performance. It also passed the provincial science and technology appraisal, obtained the second prize of science and technology progress by rear-service of RLA. It widely used in aluminum plastic pack for medicine, foodstuff, electron component etc.

Features:

1. Mould exchange: as a traditial 250 type of improved, mould and old type completely general, is old customer renewal of very good choice.
2. Die an installation and adjusfrnent: continue lathes type guide rail, use screw adjusting mode of poles, make cabinet protection design clever, can prenent drugs fall into the machine, it is mo re convenient to clean up.
3. Servo traction, set the more convenient, more easily to the cursor, PVC motor feeding, transmission more robust.
4. Can be divided structure, convenient transport elevator, gassing axis with PVC, aluminum foil, high-end better use.

Specifications:

DPP Automatic Blister Packaging Machine
	DPP-80	DPP-140	DPP-250
Blanking frequency	PVC-AL: 10-40 times/min AL-AL: 10-30 times/min	PVC-AL: 10-40 times/min AL-AL: 10-30 times/min	PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
Adjustable scope of feed travel	30-100mm(adjustable)	30-120mm(adjustable)	30-140mm(adjustable)
The max forming area and depth	120mm×90mm×20mm	150mm×120mm×26mm	240mm×130mm×26mm
Wrapper: ALU	Length: 130mm, thickness: 0.02-0.035mm	Length: 160mm, thickness: 0.02-0.035mm	Length: 250mm, thickness: 0.02-0.035mm
Wrapper: PVC	Length: 130mm, thickness: 0.25-0.5mm	Length: 160mm, thickness: 0.25-0.5mm	Length: 250mm, thickness: 0.25-0.5mm
Wrapper: PTP	Length: 130mm, thickness: 0.02-0.035mm	Length: 160mm, thickness: 0.02-0.035mm	Length: 250mm, thickness: 0.02-0.035mm
Wrapper:Dialysis paper	Length:130mm, specification:50-100 gram	Length:160mm, specification:50-100 gram	Length:250mm, specification:50-100 gram
Power of forming heating	1.5KW	2.4KW	3KW
Power of sealing heating	1.5KW	2.4KW	3KW
Main motor power	0.75KW	1.5KW	1.5KW
Machine Voltage	380V/220V 50Hz
Capacity of air compressor	≥0.2m3/min Pressure: 0.4～0.6MPa	≥0.2m3/min Pressure: 0.5～0.7MPa	≥0.2m3/min Pressure: 0.5～0.7MPa
Overall dimension	2070mm×650mm×1060mm	2350×580×1500 mm	3100×670×1650mm
Weight	560Kg	800KG	1500KG

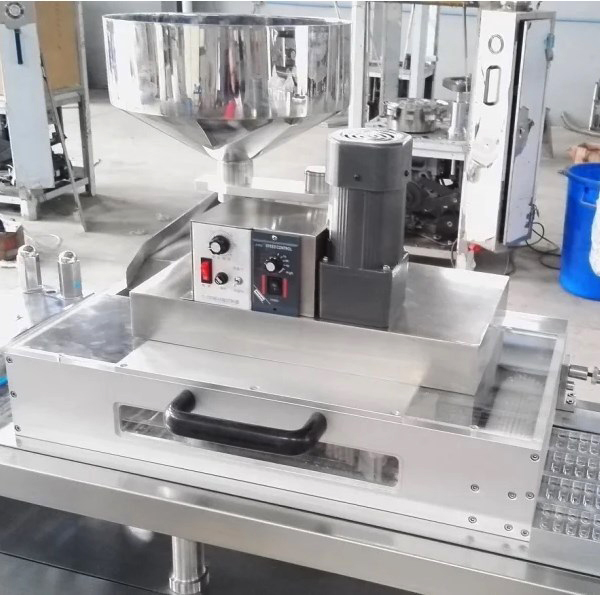

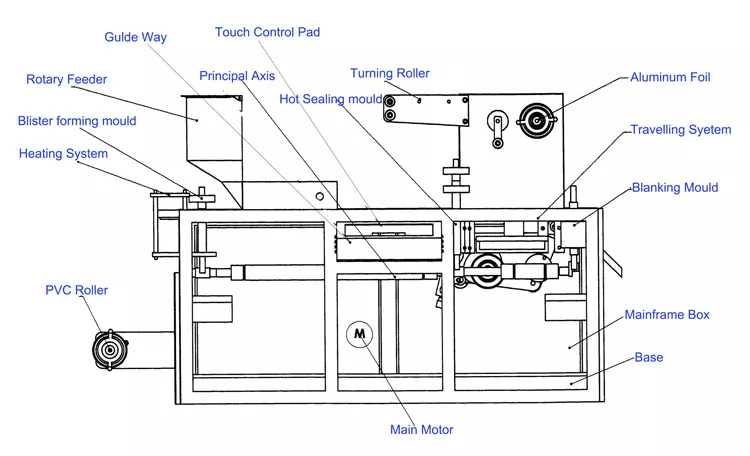

Machine Details:

1) Quick PVC foil cutting and supply

2) Heating and Forming station

3) Product automatic brush feeder

4) Heating and Sealing station

5) Driving Cylinder

6) Punching Station and waste collection

Application:

Flat-plate Automatic Blister Packing Machine is the new generation of blister packaging equipment, improved on the basis of traditional machine suitable for capasule, tablets, milk slice, candy, the productssuch as aluminium, aluminium, zhisu compositeseal packing.
